FLO-BIN Products & Spec Sheets
87 Cubic Foot Carbon Steel FLO-BIN
Our 87 Cubic Foot FLO-BIN provides a high-capacity, durable solution for safely handling and packaging catalysts, powders, and granules, designed to meet rigorous international standards and drive operational efficiency for your turnaround.
87 Cubic Ft. FLO-BIN Specifications:
- Rating: UN11A/Y
- UN Packing Group(s): II & III
- Tare Weight: ~875 lbs.
- Gross Rating: 7,000 lbs.
- Capacity: 87 ft3
- Length: 44 in.
- Width: 52 in.
- Height: 86 in.
- Top Closure: 18 in. Coated Drum Lid & Lockring
- Bottom Closure: Dual Cam-Bars
- Security: Safe Lock Tabs
- Bottom Discharge: 9 in. X 22 in. Slide Gate
- Bottom Lifting: 4-Way Forklift Channels
- Top Lifting: Two Lifting Lugs
- Purge Plug: 1/2’’ NPT
- Material: Carbon Steel
Internally Lined 87 Cubic Ft. FLO-BIN
Our Internally Lined 87 Cubic Ft. FLO-BINs are designed to safely transport your pre-activated, fresh, and precious metals catalyst without the need for time-consuming and temporary sandblasting solutions.
Internally Lined 87 Cubic Ft. FLO-BIN Specifications:
- Rating: UN11A/Y
- UN PAcking Group(s): II & III
- Tare Weight: ~875 lbs.
- Gross Rating: 7,000 lbs.
- Capacity: 87 ft3
- Length: 44 in.
- Width: 52 in.
- Height: 86 in.
- Top Closure: 18 in. Coated Drum Lid & Lockring
- Bottom Closure: Dual Cam-Bars
- Security: Safe Lock Tabs
- Bottom Discharge: 9 in. X 22 in. Slide Gate
- Bottom Lifting: 4-Way Forklift Channels
- Top Lifting: Two Lifting Lugs
- Purge Plug: 1/2’’ NPT
- Material: Ext: Carbon Steel; Int: Fusion Bonded Epoxy
Advantages Over Sandblasting:
- Lined FLO-BINs delivered directly from any FLO-BIN Rentals service facility.
- Save time and money avoiding sandblasting fees and transport to/from sandblaster.
- No need for inert gas purge pre-staging to avoid rust blooming.
- A completely rust-free internal fusion bonded epoxy coating, customized to fit activated, fresh, and precious metals catalyst requirements.
43 Cubic Foot Carbon Steel FLO-BIN
Our 43 Cubic Foot FLO-BIN offers a robust and efficient solution for catalyst, powders, and granules packaging, ensuring safety, sustainability, and compliance with global standards. Known as “short bins”, these FLO-BINs are designed to fit under low clearance areas and accommodate low discharge nozzles on your unit.
43 Cubic Ft. FLO-BIN Specifications:
- Rating: UN11A/Y
- UN Packing Group(s): II & III
- Tare Weight: ~680 lbs.
- Gross Rating: 3,395 lbs.
- Capacity: 43 ft3
- Length: 44 in.
- Width: 52 in.
- Height: 53 in.
- Top Closure: 18 in. Coated Drum Lid & Lockring
- Bottom Closure: Dual Cam-Bars
- Security: Safe Lock Tabs
- Bottom Discharge: 9 in. X 22 in. Slide Gate
- Bottom Lifting: 4-Way Forklift Channels
- Top Lifting: Two Lifting Lugs
- Purge Plug: 1/2″ NPT
- Material: Carbon Steel

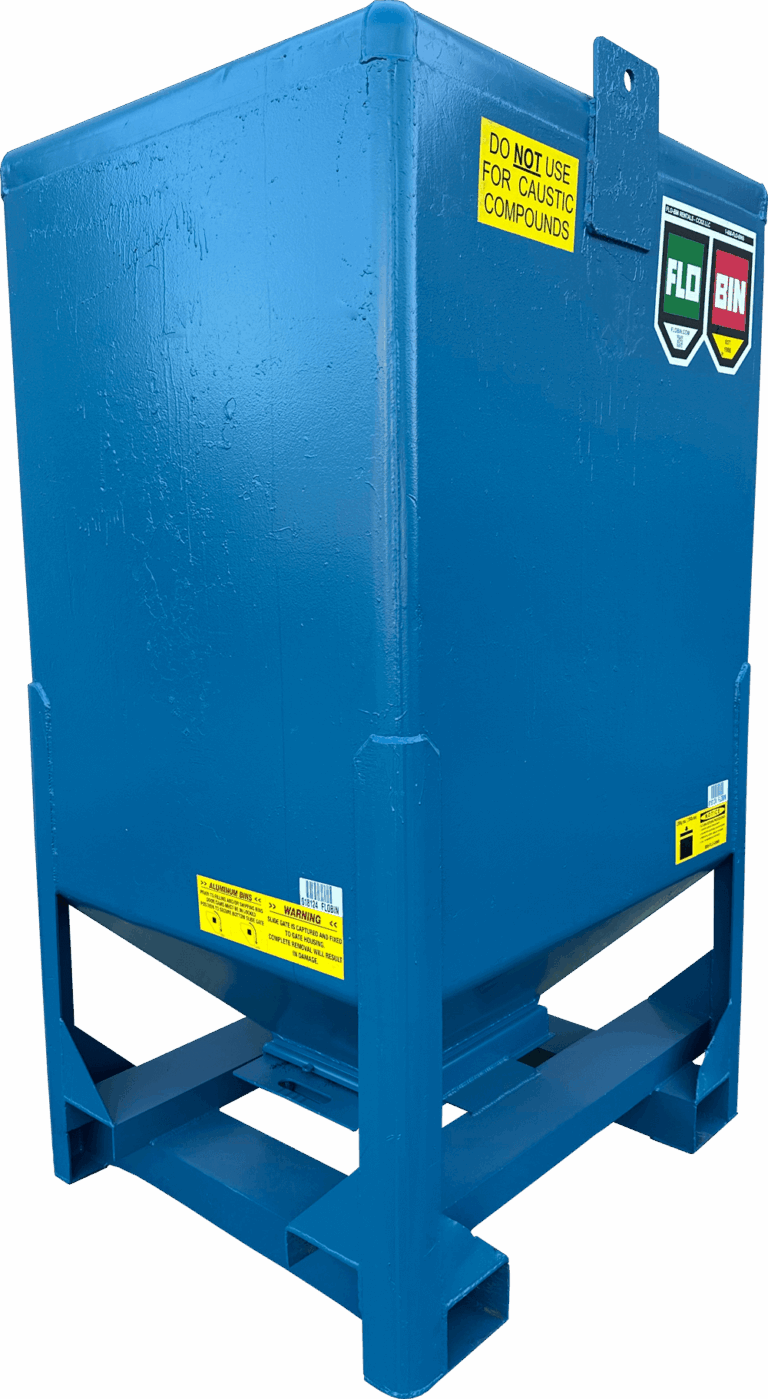

90 Cubic Foot Aluminum FLO-BIN
Our 90 Cubic Foot FLO-BIN offers a lightweight yet robust option for storing and transporting catalysts, powders, and granules, combining superior strength with corrosion resistance to ensure safe and efficient handling.
90 Cubic Ft. Aluminum Specifications:
- Rating: Dot 56
- UN Packing Group(s): II & III
- Tare Weight: ~410 lbs.
- Gross Rating: 7,700 lbs.
- Capacity: 90 ft3
- Length: 44 in.
- Width: 52 in.
- Height: 92.5 in.
- Top Closure: 22 in. Coated Drum Lid & Lockring
- Bottom Closure: Dual Cam-Bars
- Security: Safe Lock Tab
- Bottom Discharge: 15 in. x 23 in. Slide Gate
- Bottom Lifting: 4-Way Forklift Channels
- Top Lifting: Two Lifting Lugs
- Purge Plug: 1/2″ NPT
- Material: Aluminum
2300 Liter Stainless Steel FLO-BIN
Our 2300 Liter Stainless Steel FLO-BIN is designed to maximize capacity and efficiency. With 15% more capacity than the industry standard. These FLO-BINs reduce the number of containers needed for your turnaround , driving logistical, operational, and cost efficiencies.
1150 Liter SS FLO-BIN Specifications:
- Rating: UN11A/X
- UN Packing Group(s): I, II & III
- Tare Weight: ~275 kg
- Gross Rating: 2,000 kg
- Capacity: 1,150 Liters
- Length: 1,100 mm
- Width: 1,300 mm
- Height: 1,310 mm
- Top Closure: 450 mm Quick Lock Lid
- Bottom Closure: Dual Cam-Bars
- Security: Safe Lock Tab
- Bottom Discharge: 300 x 360 mm Slide Gate
- Bottom Lifting: 4-Way Forklift Channels
- Top Lifting: Four Lifting Lugs
- Purge Plug: 1’’ BSP
- Material: Stainless Steel
Advantages Over The Industry Standard:
- 15% more capacity than the industry standard
- 15% less tare weight than the industry standard
- 44 Short FLO-BINs on 1 truckload
- Resulting in:
- Project cost efficiency
- Less containers on rent
- Less containers to be handled onsite
- Less containers to be staged
- Less containers to be loaded and offloaded
- Reduction in trucks needed for transportation
1150 Liter Stainless Steel FLO-BIN
Our 1150 Liter Stainless Steel FLO-BIN is designed to fit under low clearance areas and accommodate low discharge nozzles on your unit. With 15% more capacity than the industry standard, these FLO-BINs reduce the number of containers needed for your turnaround, driving logistical, operational, and cost efficiencies.
1150 Liter SS FLO-BIN Specifications:
- Rating: UN11A/X
- UN Packing Group(s): I, II & III
- Tare Weight: ~275 kg
- Gross Rating: 2,000 kg
- Capacity: 1,150 Liters
- Length: 1,100 mm
- Width: 1,300 mm
- Height: 1,310 mm
- Top Closure: 450 mm Quick Lock Lid
- Bottom Closure: Dual Cam-Bars
- Security: Safe Lock Tab
- Bottom Discharge: 300 x 360 mm Slide Gate
- Bottom Lifting: 4-Way Forklift Channels
- Top Lifting: Four Lifting Lugs
- Purge Plug: 1’’ BSP
- Material: Stainless Steel
Advantages Over The Industry Standard:
- 15% more capacity than the industry standard
- 15% less tare weight than the industry standard
- 44 Short FLO-BINs on 1 truckload
- Resulting in:
- Project cost efficiency
- Less containers on rent
- Less containers to be handled onsite
- Less containers to be staged
- Less containers to be loaded and offloaded
- Reduction in trucks needed for transportation
