FLO-BIN Containers for Catalyst Packaging and Handling

Since 1986, we have been committed to meeting your catalyst packaging needs with our expertly designed, reliable, reusable and sustainable FLO-BINs. The design of our FLO-BIN focuses on optimization for packaging your pre-activated, fresh, spent and precious metals catalyst. Our circular packaging solution drives operational efficiency in logistics, handling and safety for your turnaround. UN11A/Y and UN11A/X approved FLO-BINs incorporate the highest possible standards to meet and exceed international road, rail and maritime transport regulations. FLO-BIN Rentals operates a variety of rental products to service your specific catalyst changeout needs.

FLO-BIN Rentals adheres to rigorous quality control procedures and regulations

UN 11A/Y Rating

UN Packing Group II & III

UN 11A/X Rating

UN Packing Group I, II, & III

Inspection Requirements

FLO-BINs require a comprehensive inspection per 49 CFR 180.352

Return Condition

FLO-BIN Rentals delivers their containers clean, odorless, and free of any materials and expects the lessee to return these containers after use in the same condition as they were delivered.

Residue Handling

Upon return, all FLO-BINs are inspected to ensure they are RCRA empty per 40 CFR 261.7

Damage Inspection

Reasonable industrial wear and tear is acceptable. Exceptional damage will be appraised, and the lessee will be responsible for associated costs.

87 Cubic Foot Carbon Steel FLO-BIN

Our 87 Cubic Foot FLO-BIN provides a high-capacity, durable solution for safely handling and packaging catalysts, powders, and granules, designed to meet rigorous international standards and drive operational efficiency for your turnaround.

87 Cubic Ft. FLO-BIN Specifications:

Rating: UN11A/Y
UN Packing Group(s): II & III
Tare Weight: ~875 lbs.
Gross Rating: 7,000 lbs.
Capacity: 87 ft³
Length: 52 in.
Width: 44 in.
Height: 86 in.
Top Closure: 18 in. Coated Drum Lid & Lockring
Bottom Closure: Dual Cam-Bars
Security: Safe Lock Tabs
Bottom Discharge: 9 in. X 22 in. Slide Gate
Bottom Lifting: 4-Way Forklift Channels
Top Lifting: Two Lifting Lugs
Purge Plug: 1/2’’ NPT
Material: Carbon Steel

Spec Sheet

Request a Quote

Internally Lined 87 Cubic Ft. FLO-BIN

Our Internally Lined 87 Cubic Ft. FLO-BINs are designed to safely transport your pre-activated, fresh, and precious metals catalyst without the need for time-consuming and temporary sandblasting solutions.

Internally Lined 87 Cubic Ft. FLO-BIN Specifications:

Rating: UN11A/Y
UN PAcking Group(s): II & III
Tare Weight: ~875 lbs.
Gross Rating: 7,000 lbs.
Capacity: 87 ft³
Length: 52 in.
Width: 44 in.
Height: 86 in.
Top Closure: 18 in. Coated Drum Lid & Lockring
Bottom Closure: Dual Cam-Bars
Security: Safe Lock Tabs
Bottom Discharge: 9 in. X 22 in. Slide Gate
Bottom Lifting: 4-Way Forklift Channels
Top Lifting: Two Lifting Lugs
Purge Plug: 1/2’’ NPT
Material: Ext: Carbon Steel; Int: Fusion Bonded Epoxy

Advantages Over Sandblasting:

Lined FLO-BINs delivered directly from any FLO-BIN Rentals service facility.
Save time and money avoiding sandblasting fees and transport to/from sandblaster.
No need for inert gas purge pre-staging to avoid rust blooming.
A completely rust-free internal fusion bonded epoxy coating, customized to fit activated, fresh, and precious metals catalyst requirements.

Spec Sheet

Request a Quote

43 Cubic Foot Carbon Steel FLO-BIN

Our 43 Cubic Foot FLO-BIN offers a robust and efficient solution for catalyst, powders, and granules packaging, ensuring safety, sustainability, and compliance with global standards. Known as “short bins”, these FLO-BINs are designed to fit under low clearance areas and accommodate low discharge nozzles on your unit.

43 Cubic Ft. FLO-BIN Specifications:

Rating: UN11A/Y
UN Packing Group(s): II & III
Tare Weight: ~680 lbs.
Gross Rating: 3,395 lbs.
Capacity: 43 ft³
Length: 52 in.
Width: 44 in.
Height: 53 in.
Top Closure: 18 in. Coated Drum Lid & Lockring
Bottom Closure: Dual Cam-Bars
Security: Safe Lock Tabs
Bottom Discharge: 9 in. X 22 in. Slide Gate
Bottom Lifting: 4-Way Forklift Channels
Top Lifting: Two Lifting Lugs
Purge Plug: 1/2″ NPT
Material: Carbon Steel

Spec Sheet

Request a Quote

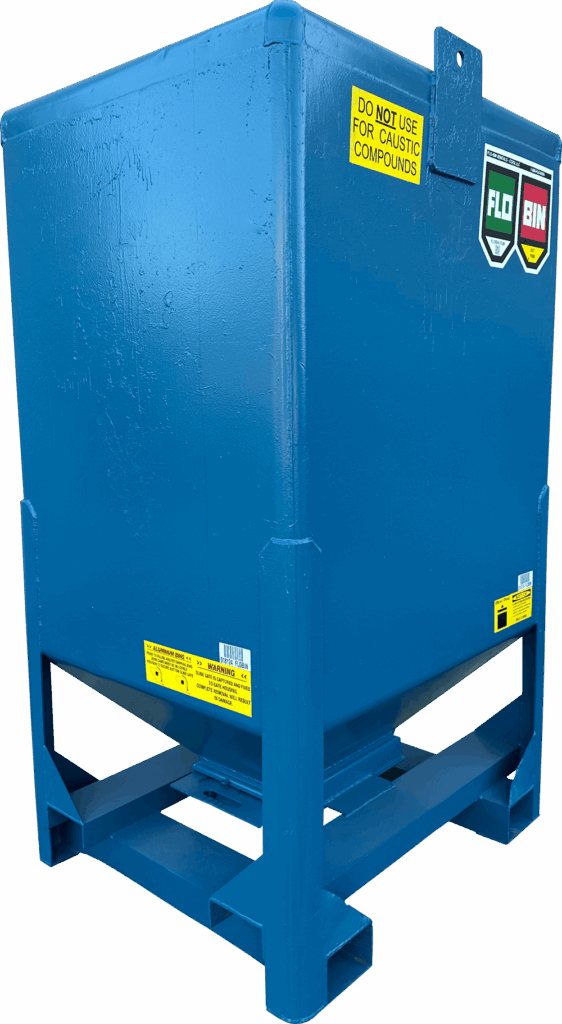

90 Cubic Foot Aluminum FLO-BIN

Our 90 Cubic Foot FLO-BIN offers a lightweight yet robust option for storing and transporting catalysts, powders, and granules, combining superior strength with corrosion resistance to ensure safe and efficient handling.

90 Cubic Ft. Aluminum Specifications:

Rating: Dot 56
UN Packing Group(s): II & III
Tare Weight: ~410 lbs.
Gross Rating: 7,700 lbs.
Capacity: 90 ft³
Length: 52 in.
Width: 44 in.
Height: 92.5 in.
Top Closure: 22 in. Coated Drum Lid & Lockring
Bottom Closure: Dual Cam-Bars
Security: Safe Lock Tab
Bottom Discharge: 15 in. x 23 in. Slide Gate
Bottom Lifting: 4-Way Forklift Channels
Top Lifting: Two Lifting Lugs
Purge Plug: 1/2″ NPT
Material: Aluminum

Spec Sheet

Request a Quote

1150 Liter Stainless Steel FLO-BIN

Our 1150 Liter Stainless Steel FLO-BIN is designed to fit under low clearance areas and accommodate low discharge nozzles on your unit. With 15% more capacity than the industry standard, these FLO-BINs reduce the number of containers needed for your turnaround, driving logistical, operational, and cost efficiencies.

1150 Liter SS FLO-BIN Specifications:

Rating: UN11A/X
UN Packing Group(s): I, II & III
Tare Weight: ~275 kg
Gross Rating: 2,000 kg
Capacity: 1,150 Liters
Length: 1,300 mm
Width: 1,100 mm
Height: 1,310 mm
Top Closure: 450 mm Quick Lock Lid
Bottom Closure: Dual Cam-Bars
Security: Safe Lock Tab
Bottom Discharge: 300 x 360 mm Slide Gate
Bottom Lifting: 4-Way Forklift Channels
Top Lifting: Four Lifting Lugs
Purge Plug: 1’’ BSP
Material: Stainless Steel

Advantages Over The Industry Standard:

15% more capacity than the industry standard
15% less tare weight than the industry standard
44 Short FLO-BINs on 1 truckload
Resulting in:
- Project cost efficiency
- Less containers on rent
- Less containers to be handled onsite
- Less containers to be staged
- Less containers to be loaded and offloaded
- Reduction in trucks needed for transportation

Spec Sheet

Request a Quote

2300 Liter Stainless Steel FLO-BIN

Our 2300 Liter Stainless Steel FLO-BIN is designed to maximize capacity and efficiency. With 15% more capacity than the industry standard. These FLO-BINs reduce the number of containers needed for your turnaround , driving logistical, operational, and cost efficiencies.

2300 Liter SS FLO-BIN Specifications:

Rating: UN11A/X
UN Packing Group(s): I, II & III
Tare Weight: ~352 kg
Gross Rating: 3,800 kg
Capacity: 2,300 Liters
Length: 1,300 mm
Width: 1,100 mm
Height: 2,130 mm
Top Closure: 450 mm Quick Lock Lid
Bottom Closure: Dual Cam-Bars
Security: Safe Lock Tab
Bottom Discharge: 300 x 360 mm Slide Gate
Bottom Lifting: 4-Way Forklift Channels
Top Lifting: Four Lifting Lugs
Purge Plug: 1’’ BSP
Material: Stainless Steel

Advantages Over The Industry Standard:

15% more capacity than the industry standard
15% less tare weight than the industry standard
Resulting in:
- Project cost efficiency
- Less containers on rent
- Less containers to be handled onsite
- Less containers to be staged
- Less containers to be loaded and offloaded
- Reduction in trucks needed for transportation

Spec Sheet

Request a Quote

Are You Meeting Your ESG Goals?

Our reusable, reliable, green catalyst containers are engineered to drive operational efficiency and support industrial sustainability. Designed for multiple cycles, FLO-BIN containers offer a circular solution, significantly reducing the reliance on single-use packaging.

Our IBCs, constructed from durable materials, guarantee safe and efficient catalyst packaging, all while mitigating environmental impact.

For more information about our FLO-BINs, contact our Headquarters in Houston or any of our international offices.
